SAT-V25 "DESERT EAGLE": Long-Endurance Tactical UAS

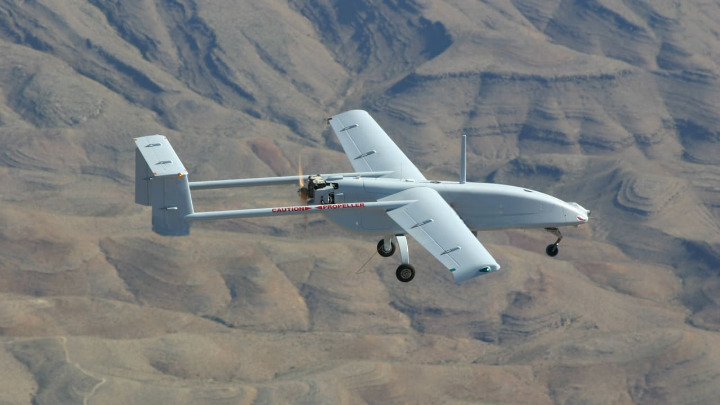

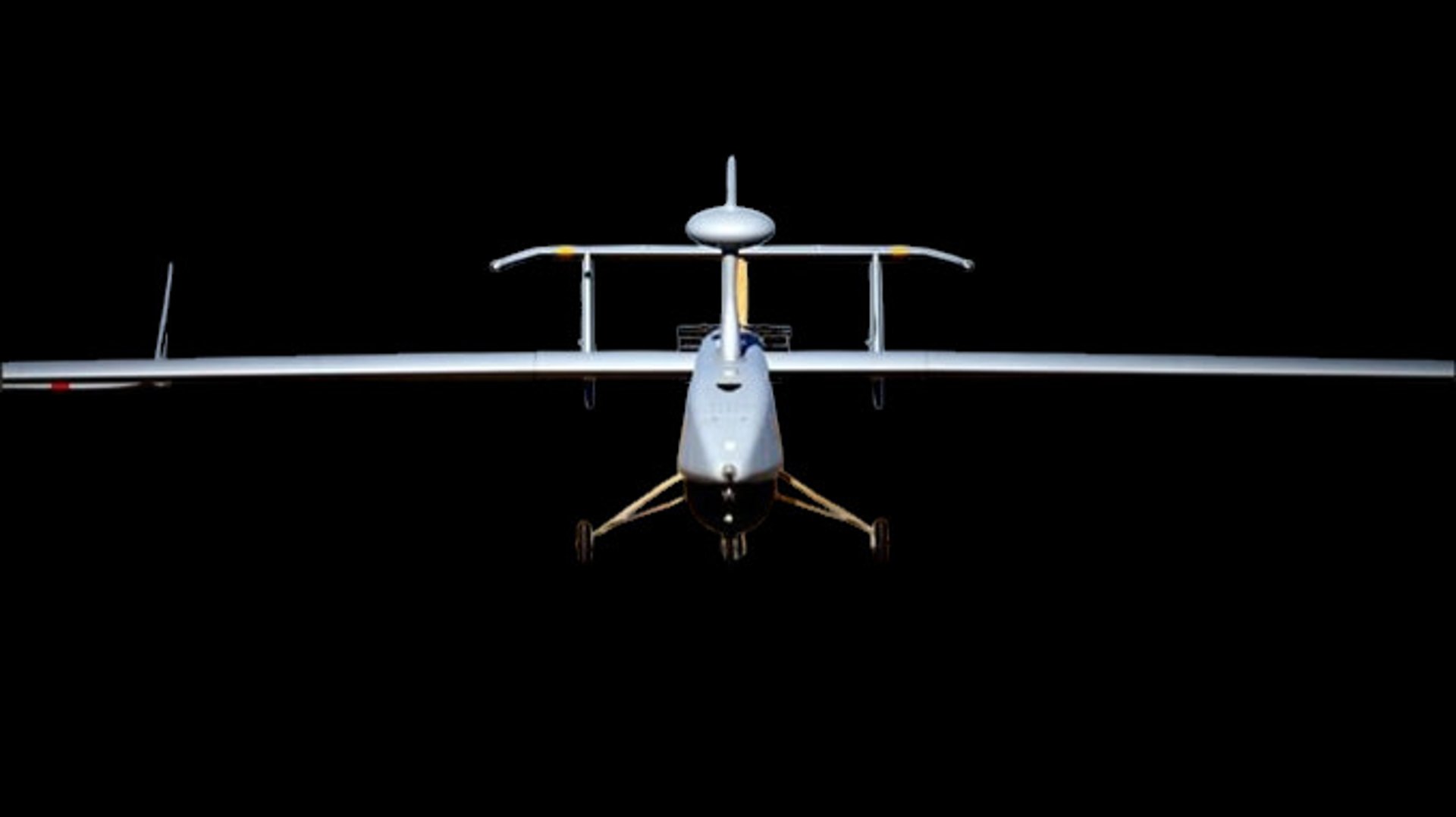

Overview The SAT-V25 is a combat-proven, runway-dependent Tactical Unmanned Aerial System (UAS) designed for persistent surveillance and reconnaissance missions. Unlike lighter VTOL systems, the SAT-V25 utilizes a robust tricycle landing gear configuration, allowing it to carry significantly heavier payloads (up to 50 kg) and operate at higher altitudes for extended periods exceeding 12 hours.

Engineered for "Sovereign Dominance," this platform serves as a strategic asset for border control, enabling continuous monitoring of vast areas with a single sortie. Its heavy-duty airframe is optimized for semi-prepared runways, making it ideal for forward operating bases in challenging environments like the African Sahel or rugged terrains.

Operational Capabilities

• Persistent "Stare" Capability: With over 12 hours of endurance, the SAT-V25 provides uninterrupted video feeds, allowing commanders to track targets (convoys, smugglers, or infrastructure threats) over complete operational cycles.

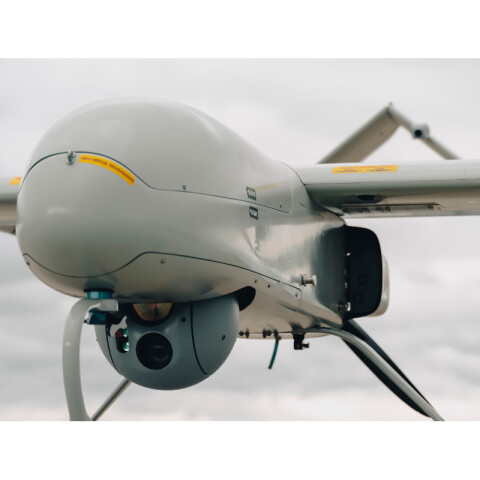

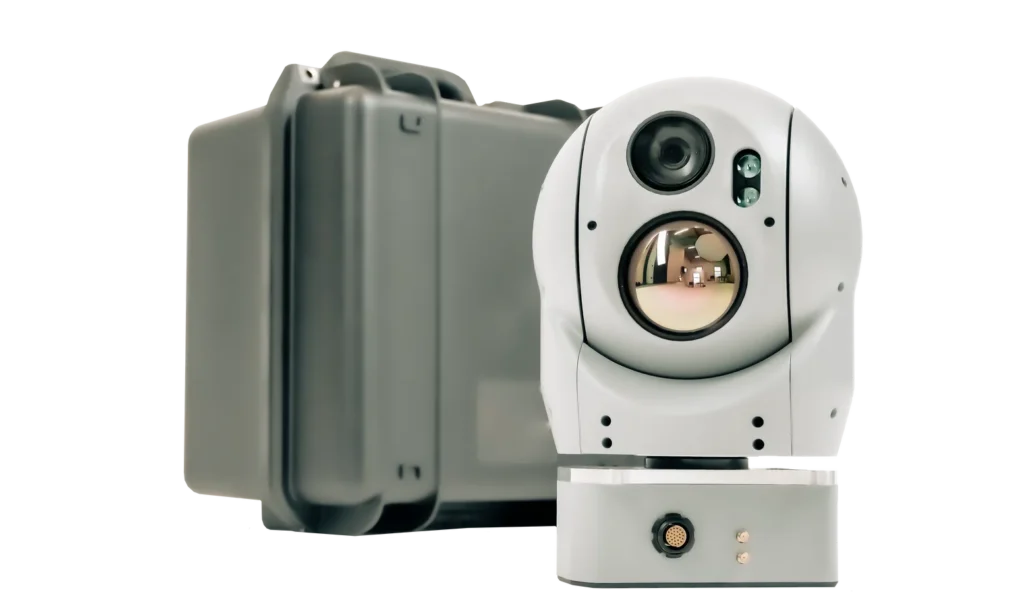

• Multi-Sensor Payload: The 50 kg payload capacity allows for the integration of dual-sensor gimbals (EO/IR), Synthetic Aperture Radar (SAR), or COMINT/SIGINT packages simultaneously.

• High-Altitude Performance: Operating at a service ceiling of 5,500 meters, the aircraft remains inaudible and virtually invisible to ground targets while maintaining a crystal-clear view.

Technical Specifications

Parameter Specification

Take-off / Landing Conventional (Wheels / Runway)

Max Endurance> 12 Hours

Operational Range (LOS) 200 km (Encrypted Data Link)

Service Ceiling 5,500 m (Approx. 18,000 ft)

Cruise Speed (Loiter) 110 km/h

Max Speed (Dash) 200 km/h

Wingspan 6.5 m

Length 4.5 m

Max Take-off Weight (MTOW) 210 kg

Max Payload Capacity 50 kg
